User Guide

CampusLink is a desktop app for managing contacts, optimized for use via a Command Line Interface (CLI) while still having the benefits of a Graphical User Interface (GUI). If you can type fast, CampusLink can get your contact management tasks done faster than traditional GUI apps.

• Quick start
• Features
  • Viewing help : help
  • Adding a person: add
  • Listing all persons : list
  • Editing a person : edit
  • Locating persons by name: find
  • Deleting a person : delete
  • Pinning a person : pin
  • Sorting contacts : sort
  • Adding or replacing a profile picture : pic
  • Toggling dark / light mode : toggle color mode
  • Clearing all entries : clear
  • Setting a password : setpassword
  • Removing password protection : removepassword
  • Exporting all contacts : export
  • Importing contacts : import
  • Setting a follow-up reminder : followup
  • Clearing a follow-up reminder : clearfollowup
  • Exiting the program : exit
  • Saving the data
  • Editing the data file
• FAQ
• Known issues
• Command summary

Quick start

1. Ensure you have Java 17 or above installed in your Computer.
   Mac users: Ensure you have the precise JDK version prescribed here.

2. Download the latest .jar file from here.

3. Copy the file to the folder you want to use as the home folder for CampusLink.

4. Open a command terminal, cd into the folder you put the jar file in, and use the java -jar addressbook.jar command to run the application.
   A GUI similar to the below should appear in a few seconds. Note how the app contains some sample data.


5. Type the command in the command box and press Enter to execute it. e.g. typing help and pressing Enter will open the help window.
   Some example commands you can try:

   • list : Lists all contacts.

   • add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 : Adds a contact named John Doe to the Address Book.

   • delete 3 : Deletes the 3rd contact shown in the current list.

   • edit 2 g/student : Edits the group information of the 2nd contact in the current list.

   • clear : Deletes all contacts.

   • pic 1 : Opens a file picker to set a profile picture for the 1st contact.

   • followup 1 f/Send project files : Sets a follow-up reminder on the 1st contact.

   • clearfollowup 1 : Removes the follow-up reminder from the 1st contact.

   • toggle color mode : Switches between dark and light mode.

   • exit : Exits the app.

6. Refer to the Features below for details of each command.

Features

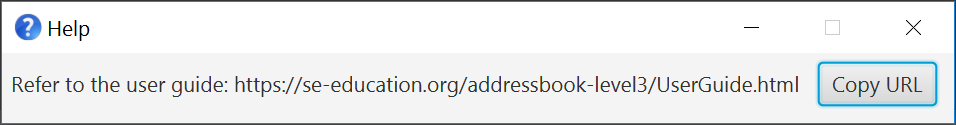

Viewing help : help

Shows a message explaining how to access the help page.

Format: help

Adding a person: add

Adds a person to the address book.

Format: add n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS [t/TAG]… [g/GROUP]… [po/POSITION]… [m/MAJOR]… [h/AVAILABLE_HOURS]​

Tip: A person can have any number of tags, groups, majors and positions (including 0)

Duplicate Detection: CampusLink automatically detects duplicate contacts. A contact is considered a duplicate if it shares the same name, phone number, or email as an existing contact. If a duplicate is detected, the contact will not be added and a warning will indicate which fields are duplicated (e.g. duplicate name, phone detected).

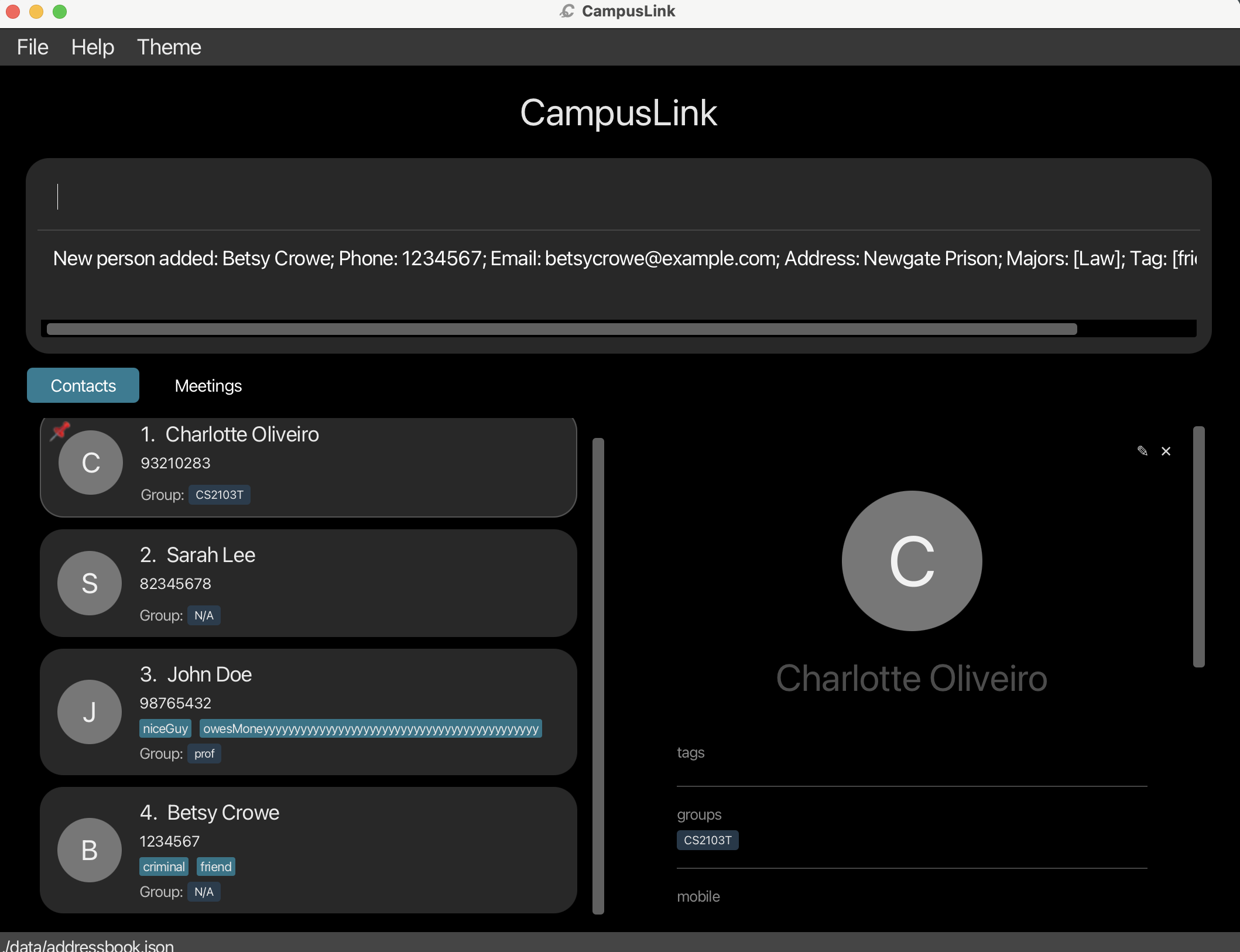

Examples:

• add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 m/Biology
• add n/Betsy Crowe t/friend e/betsycrowe@example.com a/Newgate Prison p/1234567 t/criminal

Listing all persons : list

Shows a list of all persons in the address book.

Format: list

Editing a person : edit

Edits an existing person in the address book.

Format: edit [FLAG] INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [t/TAG]…​

• Edits the person at the specified INDEX. The index refers to the index number shown in the displayed person list. The index must be a positive integer 1, 2, 3, …​
• If “-a” is used as flag, new fields will be appended to existing ones; if “-r” is used, then existing fields will be overwritten.
• If no flag is given, then by default existing fields will be overwritten.
• For fields where a contact can have at most one (e.g., name, address), “-a” flag will overwrite the existing fields.
• At least one of the optional fields (excluding flag) must be provided.
• You can remove all the person’s tags, groups, etc., by typing t/ without specifying any tags after it.

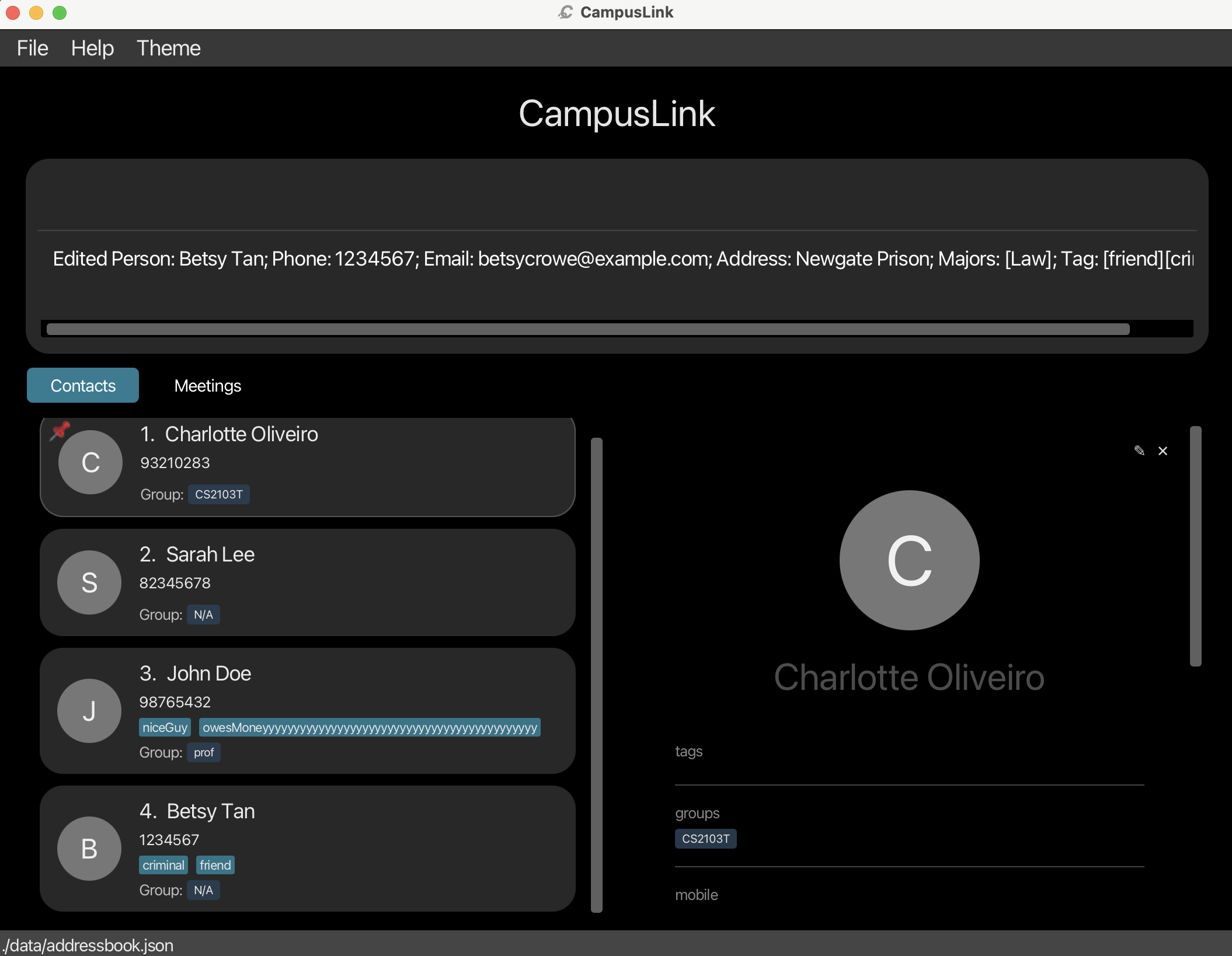

Examples:

• edit 1 p/91234567 e/johndoe@example.com Edits the phone number and email address of the 1st person to be 91234567 and johndoe@example.com respectively.
• edit -a 2 t/visible Adds tag “visible” to the 2nd person.

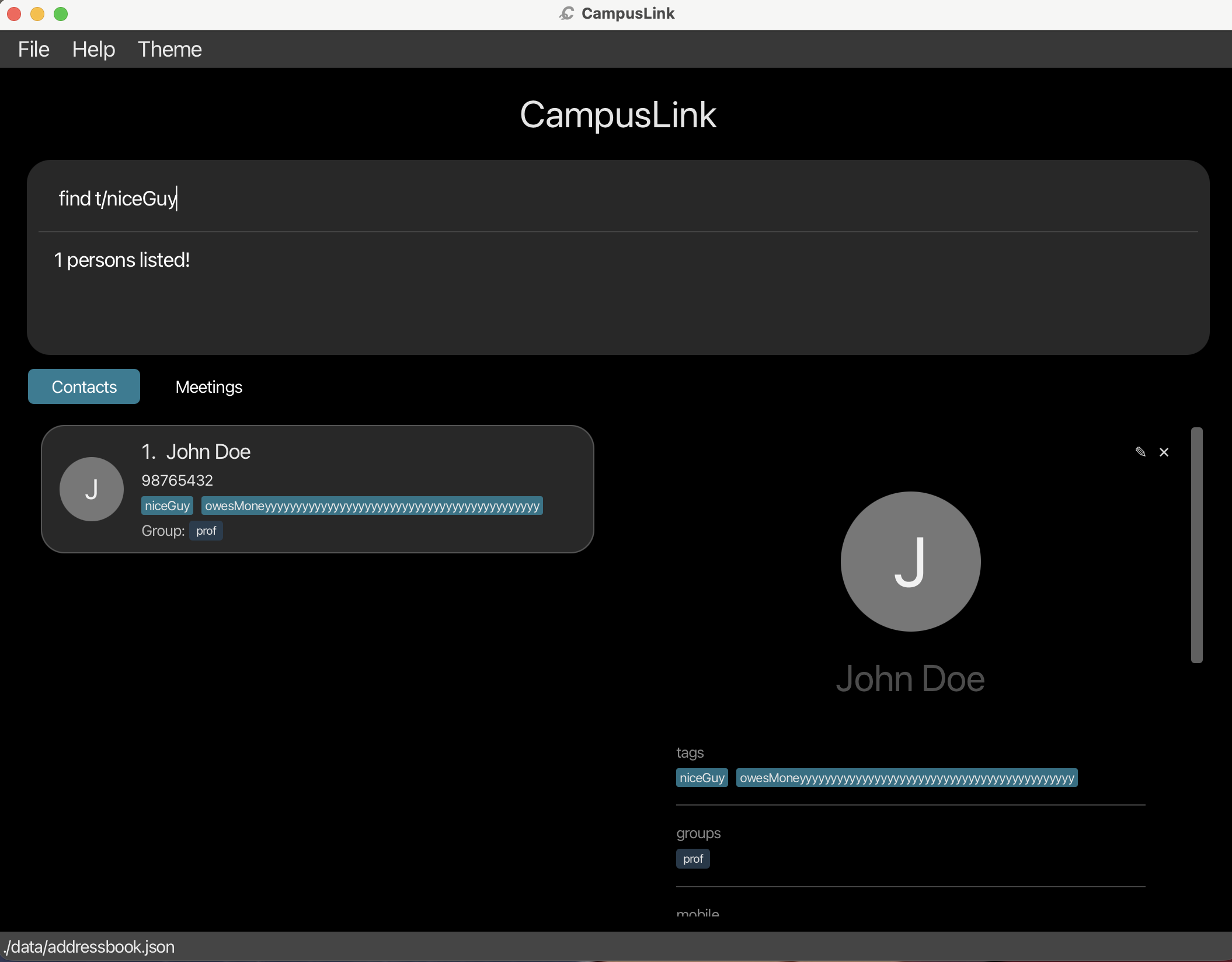

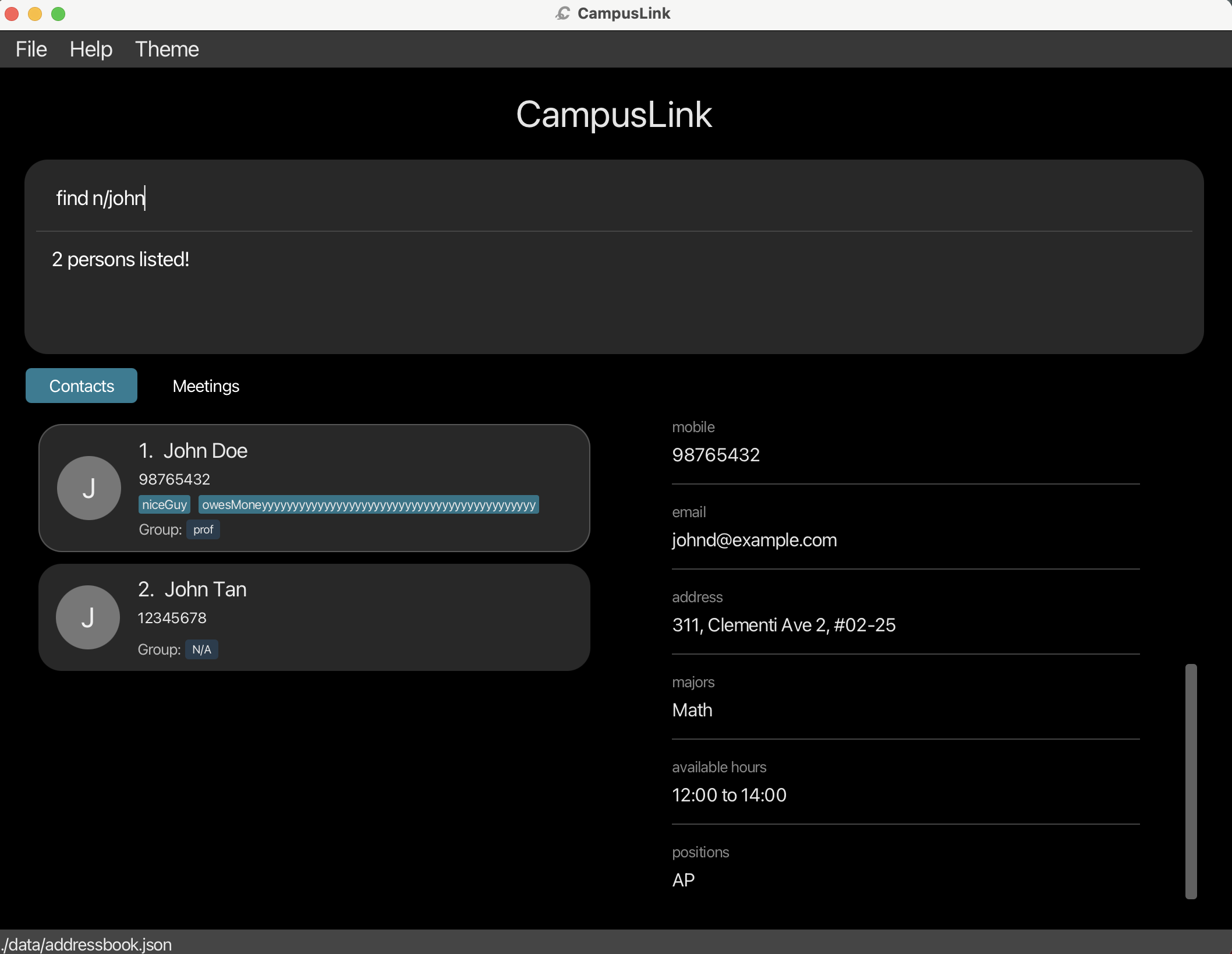

Locating persons by name: find

Finds persons whose names contain any of the given keywords.

Format: find [[FLAG] [PREFIX/KEYWORDS]].

• The search is case-insensitive. e.g hans will match Hans. Keywords themselves have no restriction, but they must be nonempty when leading and trailing spaces are trimmed (i.e., “n/Al?ce” is allowed but “n/[SPACE]” is not).
• The order of the keywords does not matter. e.g. n/Hans n/Bo will match Bo Hans
• User supplies at least one of search keywords, all of which should be preceded by corresponding prefix (e.g., n/).
• For names, only full words will be matched e.g. Han will not match Hans
• User can use flags: “-o” for optional fields, “-c” for compulsory fields. All keywords following a certain flag will be processed according to that flag. By default (no flag) fields are all optional.
• Flags should be preceded and followed by one space each. Where a part of input can be interpreted as both flag and keyword, it will be treated as a flag.
• When more than two flags exist, keywords will be processed according to the last flag before it. E.g., for “-c -o n/James -c po/Principal”, parse result will be an optional name “James” and a compulsory position “Principal”.
• Persons matching all compulsory fields (if any) AND, when optional keywords exist, at least one optional keyword, will be returned (i.e., for “-c n/James -o po/Principal”, find result will contain everyone who is both named “James” and has position “Principal”).

Examples:

• find n/John returns john and John Doe

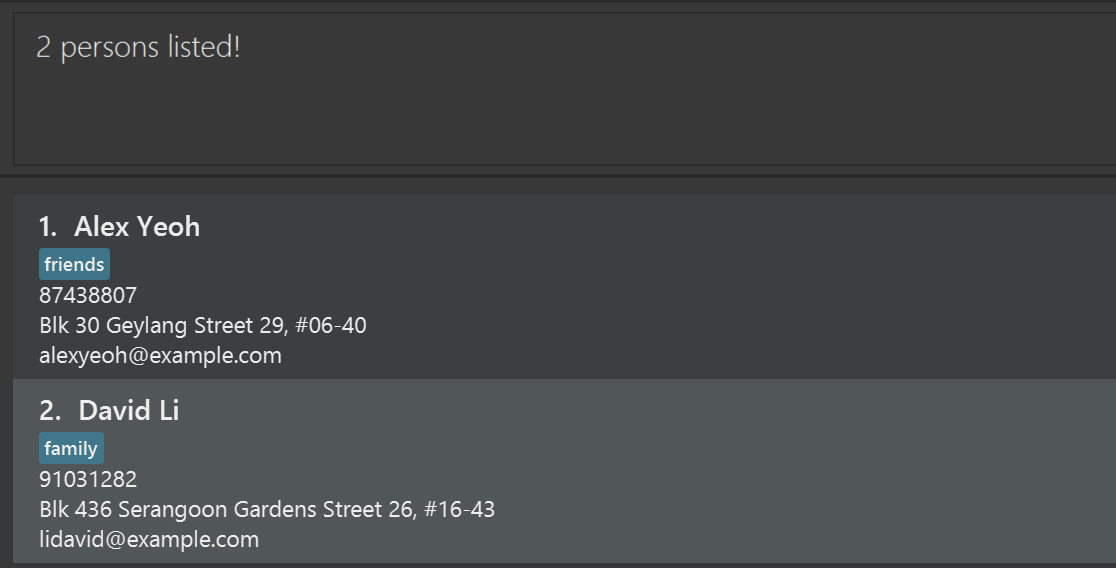

• find n/alex n/david returns Alex Yeoh, David Li

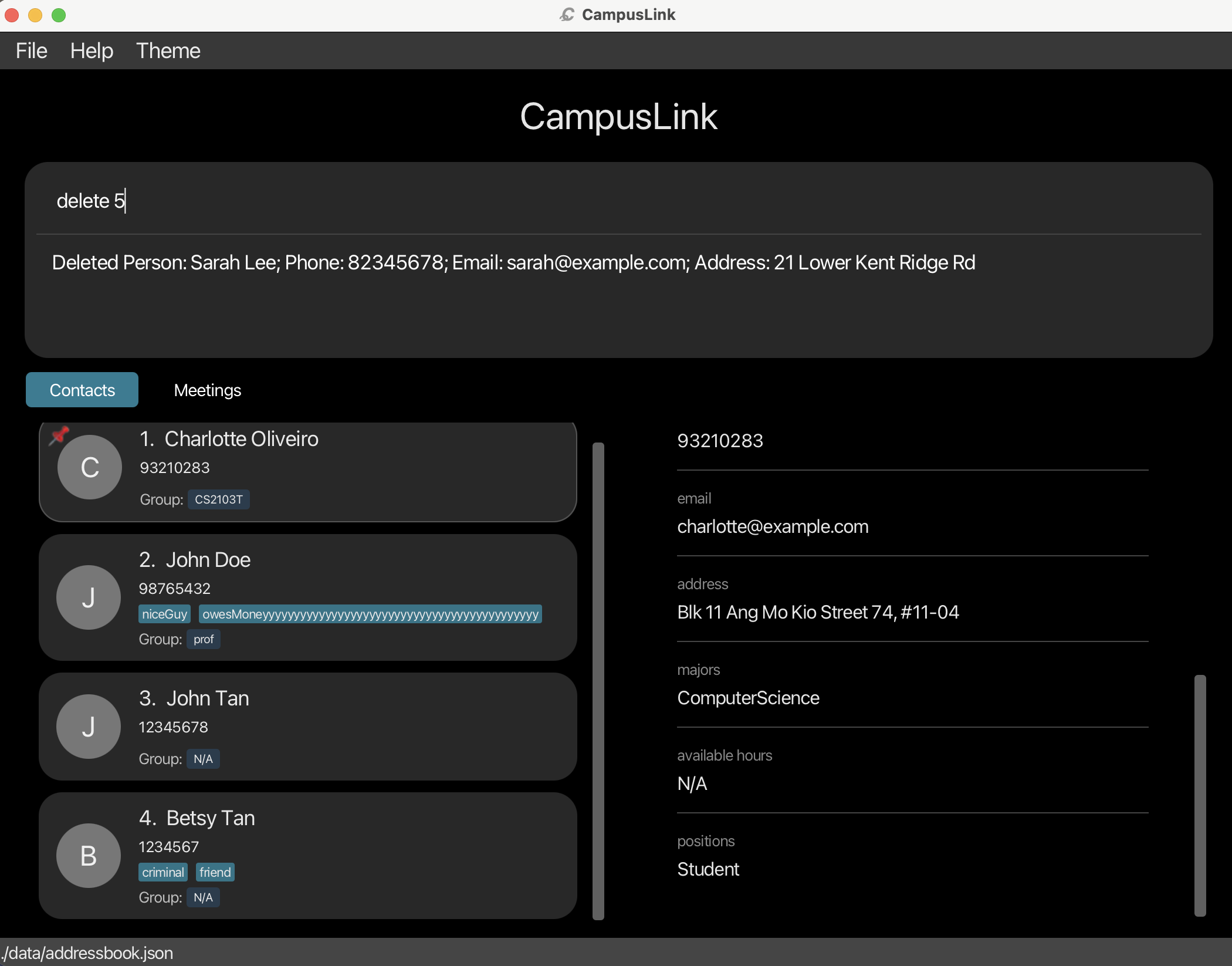

Deleting a person : delete

Deletes the specified person from the address book.

Format: delete INDEX

• Deletes the person at the specified INDEX.
• The index refers to the index number shown in the displayed person list.
• The index must be a positive integer 1, 2, 3, …​

Examples:

• list followed by delete 2 deletes the 2nd person in the address book.
• find Betsy followed by delete 1 deletes the 1st person in the results of the find command.

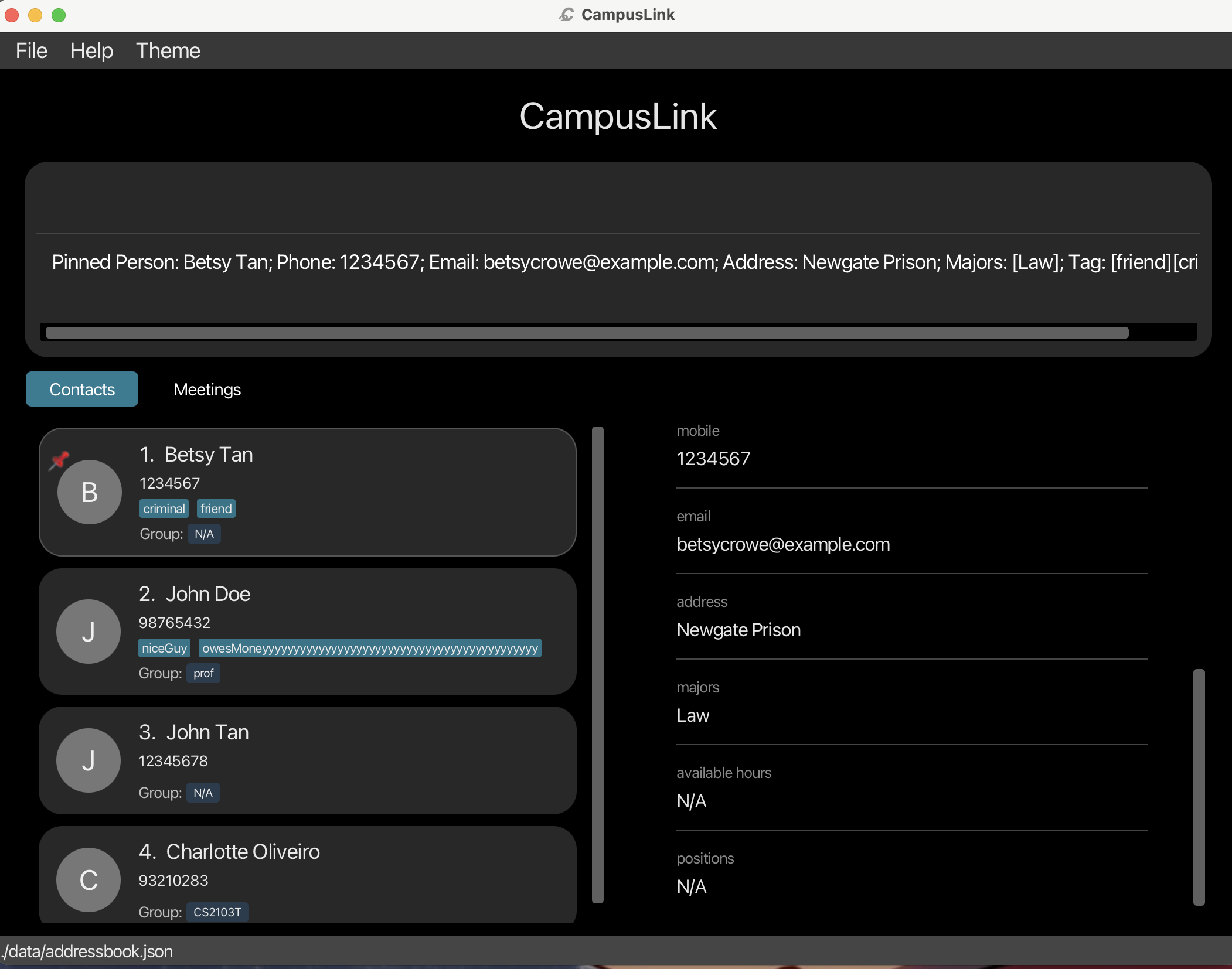

Pinning a person : pin

Toggles the pin status of the specified person. Pinned persons are moved to the top of the list and display a 📌 icon.

Format: pin INDEX

• Pins the person at the specified INDEX if they are not already pinned.
• If the person is already pinned, running pin INDEX again will unpin them.
• The index refers to the index number shown in the displayed person list.
• The index must be a positive integer 1, 2, 3, …​
• A maximum of 3 persons can be pinned at a time. Attempting to pin a 4th person will show an error.
• Pin status is saved and persists across sessions.

Examples:

• pin 1 pins the 1st person in the list.
• pin 1 again unpins that person.

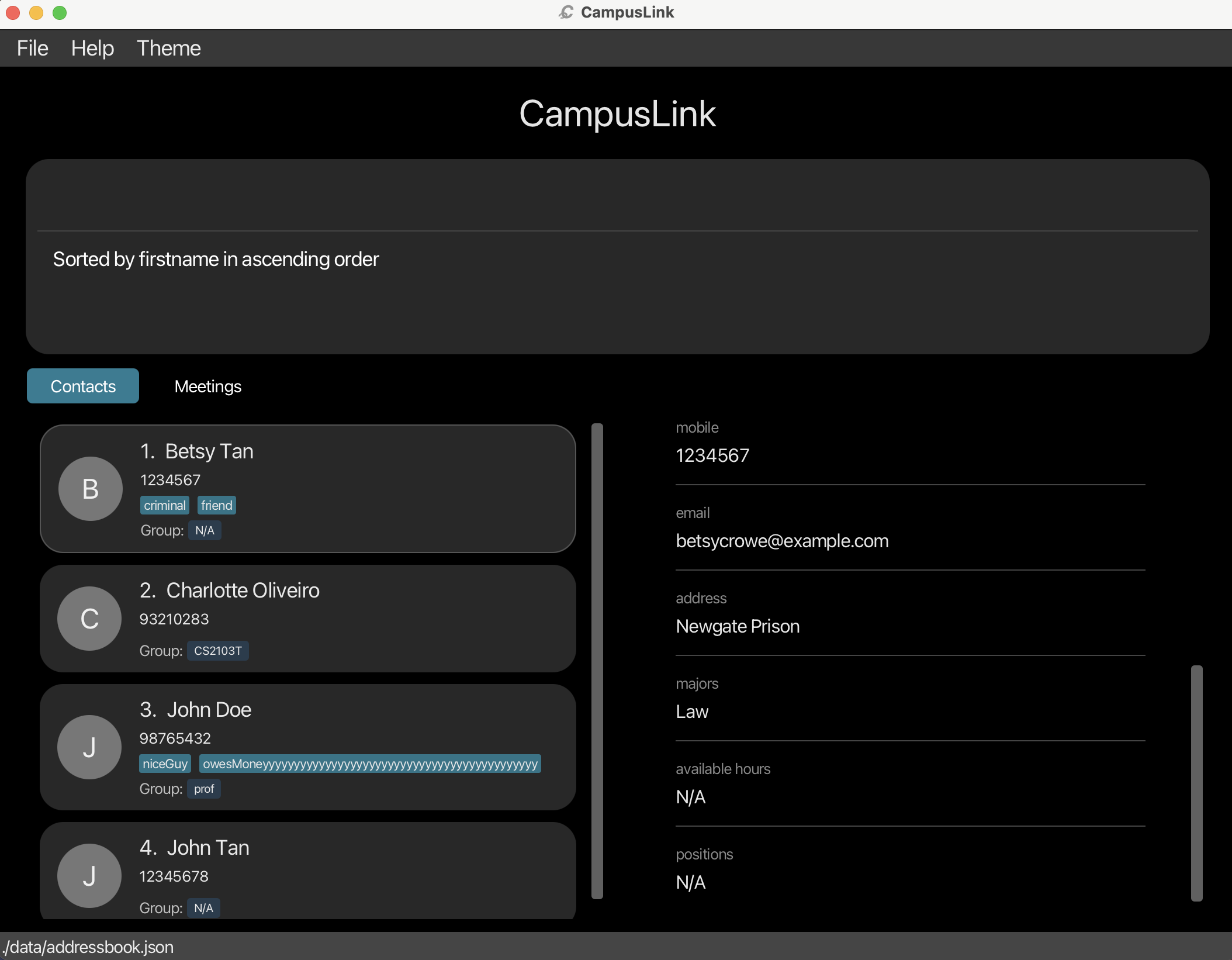

Sorting contacts : sort

Sorts the displayed contact list by a specified field and order. Pinned contacts always remain at the top.

Format: sort CONDITION ORDER (ORDER can be ASC, DESC, a, or d)

• CONDITION: firstname, lastname, or recent
  • firstname sorts by the first word of the person’s name.
  • lastname sorts by the last word of the person’s name.
  • recent sorts contacts by their underlying storage/import order (newly imported contacts appear at the top).
• ORDER: ASC (ascending, A→Z) or DESC (descending, Z→A)
  • Note: For recent, ASC and DESC determine the ordering direction of the underlying list structure.
• The sort is case-insensitive.
• Pinned contacts always appear at the top of the list, with the sort applied within pinned and unpinned groups.

Examples:

• sort firstname ASC (or sort firstname a) sorts all contacts by first name, A to Z.
• sort lastname DESC (or sort lastname d) sorts all contacts by last name, Z to A.
• sort recent a restores the list to its original insertion order, displaying recently imported contacts at the top.

Adding or replacing a profile picture : pic

Opens a file picker to set or replace the profile picture for the specified contact. The picture is displayed on the right side of the contact card.

• If no picture has been set, a 📷 button appears — clicking it opens the file picker.
• If a picture already exists, clicking on it also opens the file picker to replace it.

Format: pic INDEX

• INDEX must be a positive integer referring to a contact in the current list.
• Supported formats: PNG, JPG, JPEG, GIF, BMP.
• The picture is saved persistently and will appear on next launch.

Examples:

• pic 1 — opens a file picker to set or replace the picture for the 1st contact.
• pic 3 — opens a file picker to set or replace the picture for the 3rd contact.

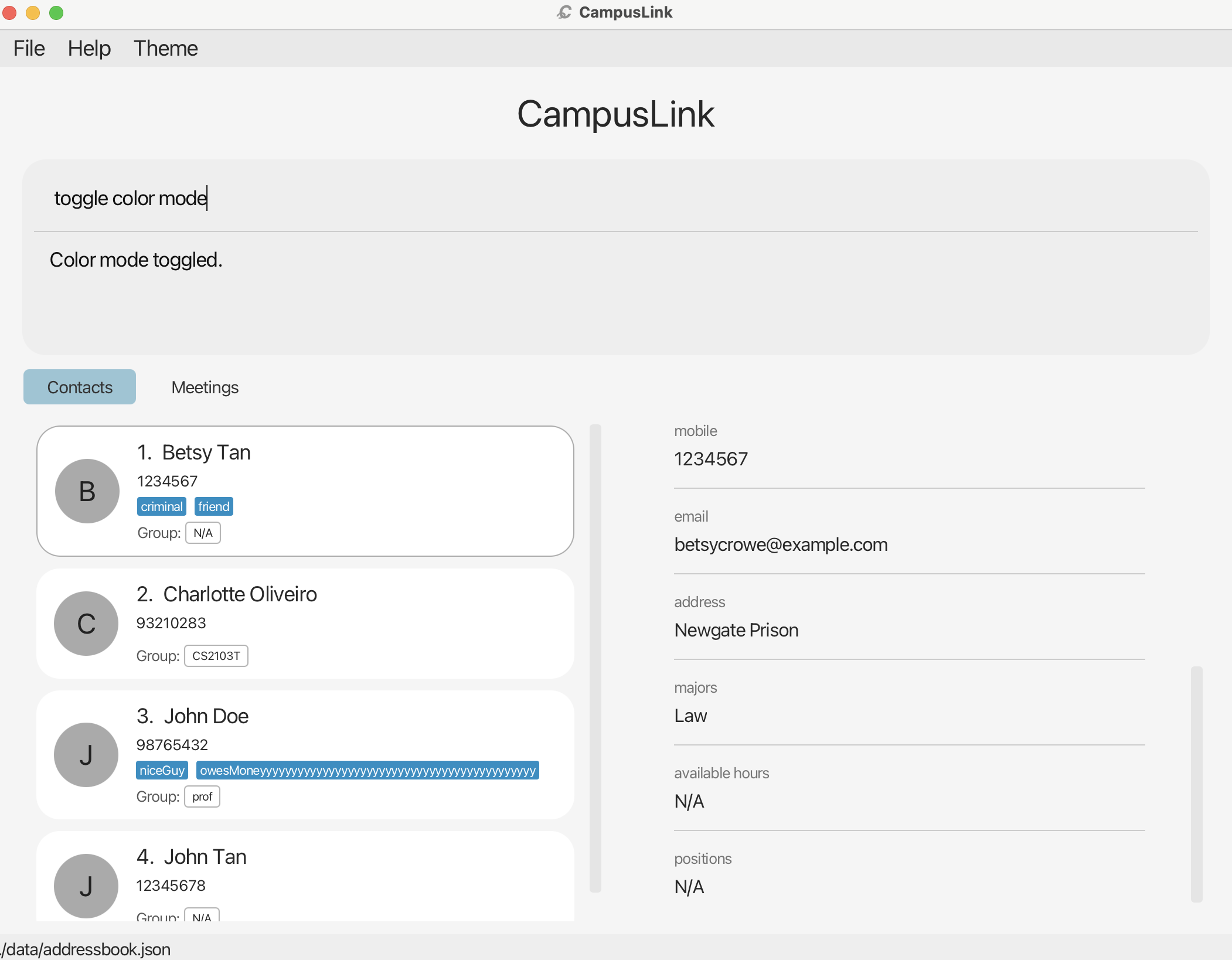

Toggling dark / light mode : toggle color mode

Switches the application between dark mode and light mode. A ☀ / 🌙 button at the top-right corner of the window does the same thing.

Format: toggle color mode

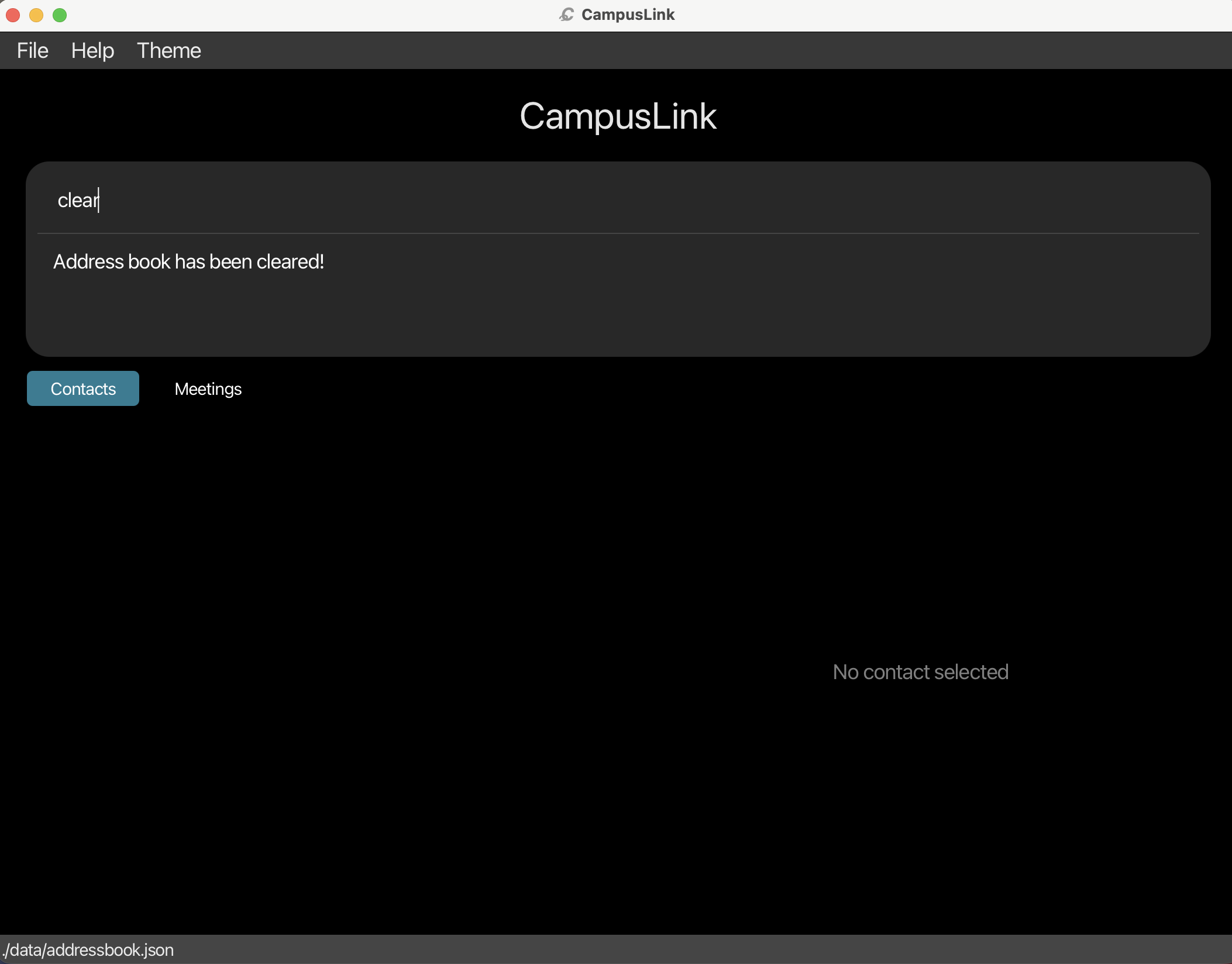

Clearing all entries : clear

Clears all entries from the address book.

Format: clear

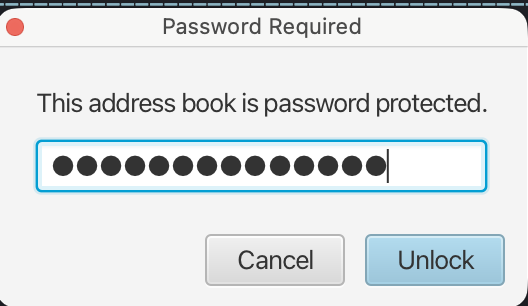

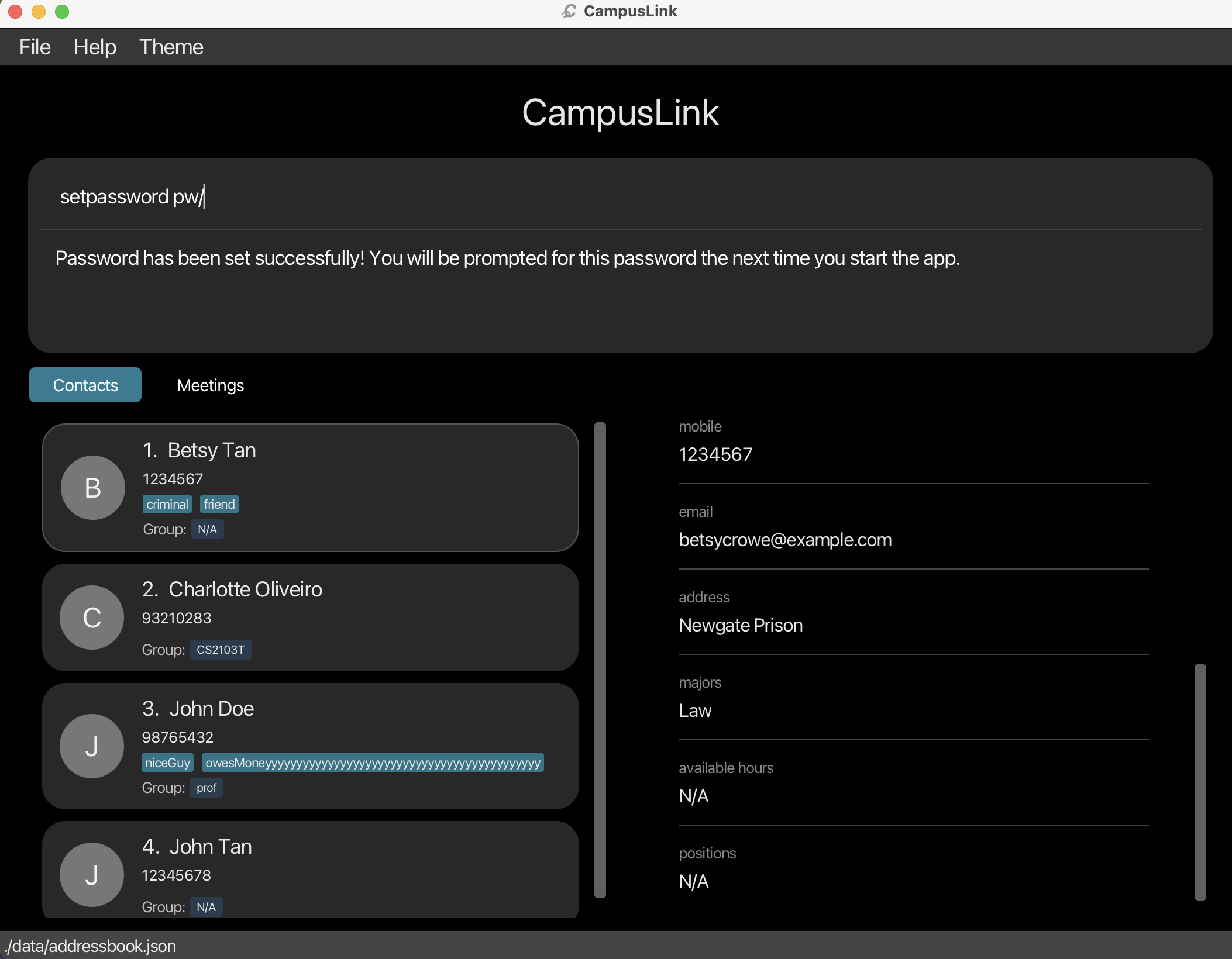

Setting a password : setpassword

Sets a password to protect the address book. You will be prompted to enter this password every time you start CampusLink.

Format: setpassword pw/PASSWORD

• PASSWORD must not be empty or consist solely of spaces.
• If a password is already set, this command replaces it with the new password.
• The password is stored as a SHA-256 hash — your plaintext password is never saved.

Caution: After setting a password, if you enter the wrong password 3 times on startup, all contacts will be permanently erased and password protection will be removed. There is no way to recover this data.

Examples:

• setpassword pw/mySecret123

Removing password protection : removepassword

Removes the password from the address book. The app will no longer prompt for a password on startup.

Format: removepassword

• If no password is currently set, a message is shown and no changes are made.

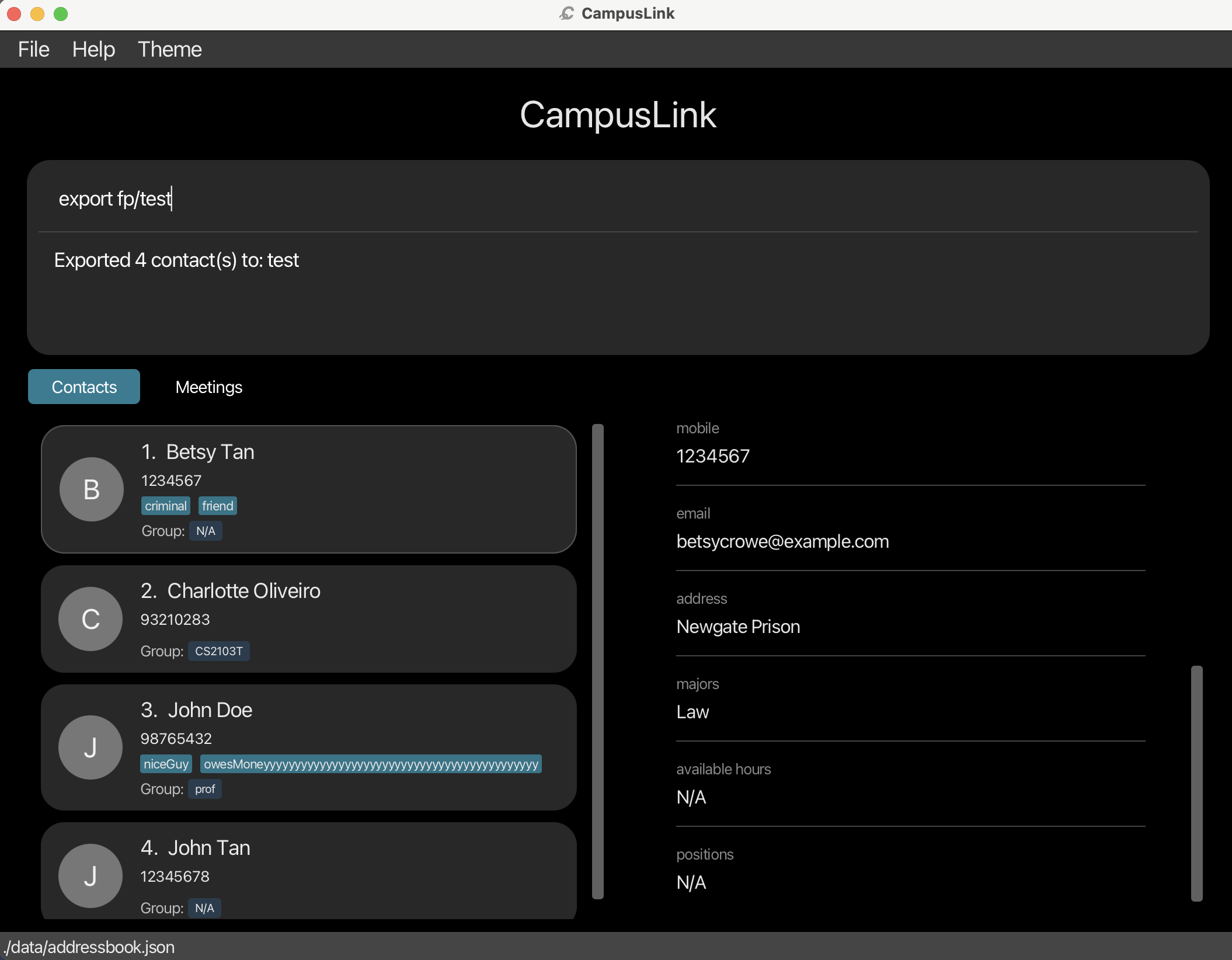

  Exporting all contacts : export

Exports all contacts in the address book to a JSON file at the specified path. The exported file uses the same JSON format as the app’s data file, so it can be imported back later.

Format: export fp/FILE_PATH

• FILE_PATH is the path to the output file (e.g. backup.json or data/contacts_backup.json).
• If the file already exists it will be overwritten.
• The export includes all contacts regardless of any active filter.

Examples:

• export fp/backup.json exports all contacts to backup.json in the current working directory.
• export fp/data/team_contacts.json exports all contacts to data/team_contacts.json.

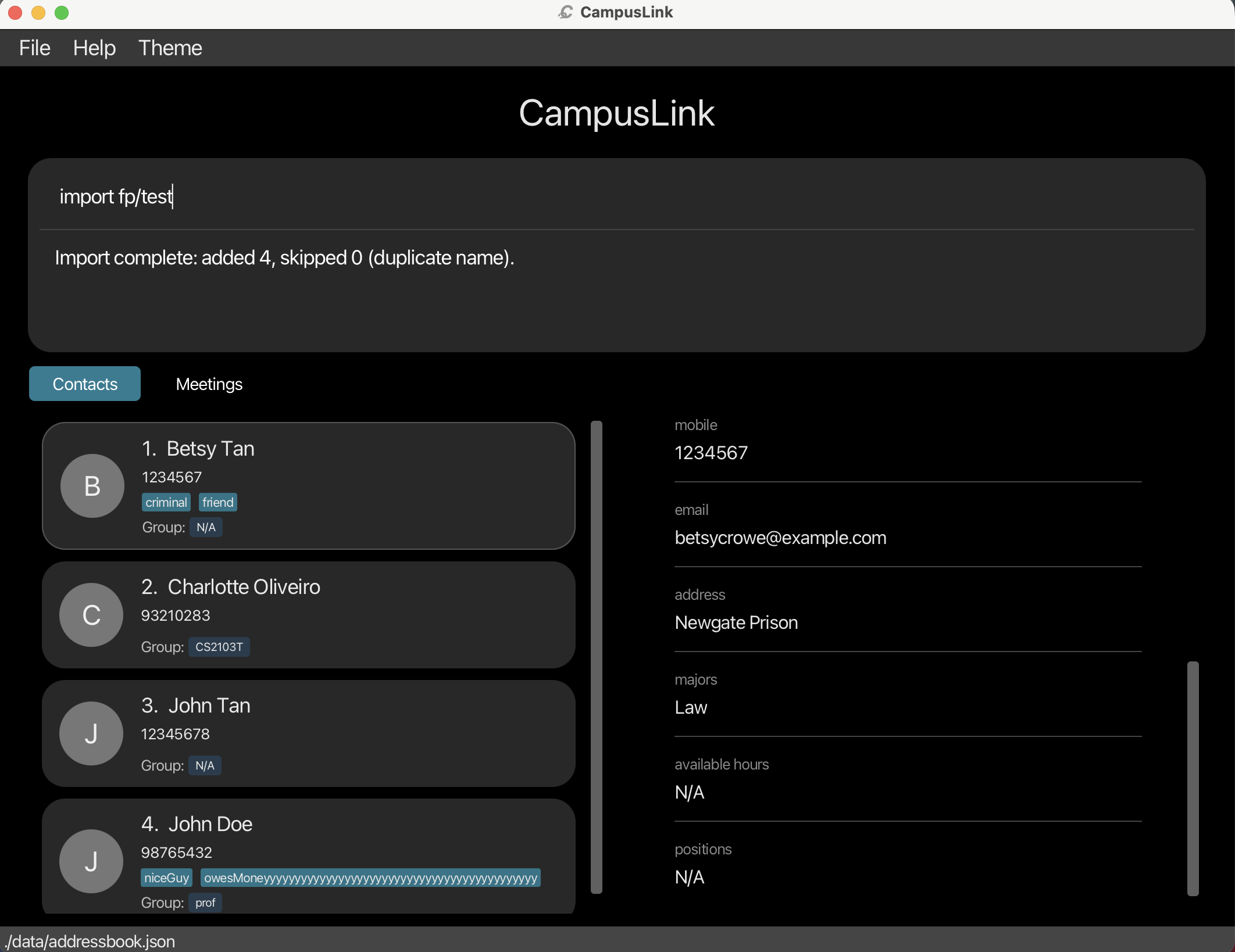

Importing contacts : import

Imports contacts from a JSON file into the current address book. Existing contacts are kept; entries whose name matches an existing contact are skipped (not overwritten).

Format: import fp/FILE_PATH

• FILE_PATH is the path to a valid JSON file previously exported from CampusLink (or any file in the same format).
• The import is additive — your current contacts are never removed or overwritten.
• Newly imported contacts will be stacked on top of all current contacts, preserving their relative order from the imported file.
• Contacts with the same name as an existing contact are considered duplicates and are skipped.
• After import, the result message shows how many contacts were added and how many were skipped.

Examples:

• import fp/backup.json imports contacts from backup.json.
• import fp/data/team_contacts.json imports contacts from data/team_contacts.json.

Tip: Use export on one computer and import on another to transfer your contacts easily.

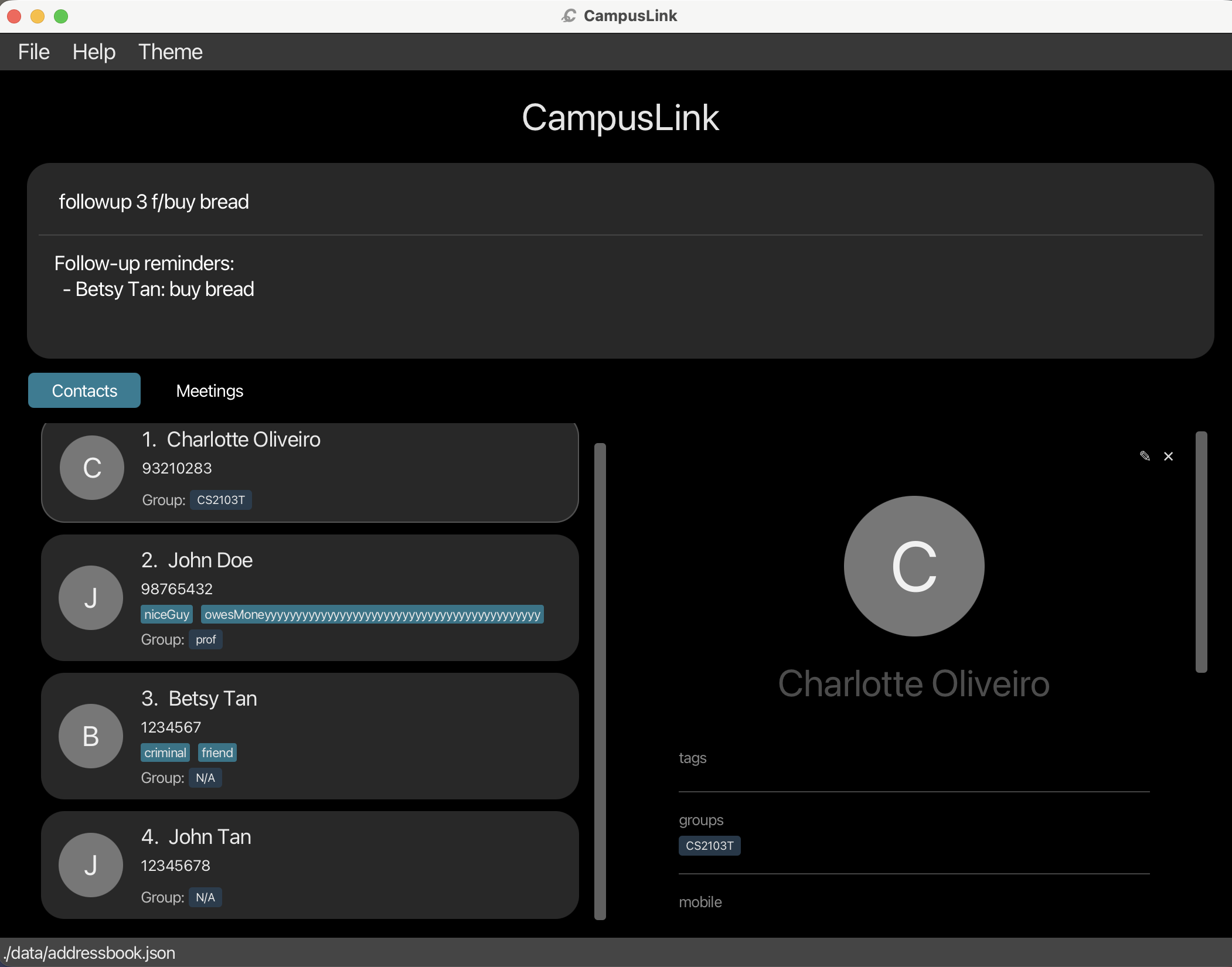

Setting a follow-up reminder : followup

Attaches a short reminder note to a contact so you know what to follow up on with them. The note is shown automatically in the result display every time the app starts.

Format: followup INDEX f/NOTE

• Sets the follow-up note for the person at the specified INDEX.
• The index refers to the index number shown in the displayed person list. The index must be a positive integer 1, 2, 3, …​
• NOTE must not be blank and must not start with whitespace.
• If a follow-up note already exists on that contact, it is replaced by the new note.

Examples:

• followup 1 f/Email about internship by Friday — sets a reminder on the 1st person.
• followup 3 f/Discuss project deadline next week — sets a reminder on the 3rd person.

Clearing a follow-up reminder : clearfollowup

Removes the follow-up note from a contact once you are done with it.

Format: clearfollowup INDEX

• Clears the follow-up note for the person at the specified INDEX.
• The index must be a positive integer 1, 2, 3, …​
• If the contact has no follow-up note, an error is shown.

Examples:

• clearfollowup 1 — removes the follow-up reminder from the 1st person.

Exiting the program : exit

Exits the program.

Format: exit

Saving the data

AddressBook data are saved in the hard disk automatically after any command that changes the data. There is no need to save manually.

Editing the data file

AddressBook data are saved automatically as a JSON file [JAR file location]/data/addressbook.json. Advanced users are welcome to update data directly by editing that data file.

Caution: If your changes to the data file makes its format invalid, AddressBook will discard all data and start with an empty data file at the next run. Hence, it is recommended to take a backup of the file before editing it.
Furthermore, certain edits can cause the AddressBook to behave in unexpected ways (e.g., if a value entered is outside of the acceptable range). Therefore, edit the data file only if you are confident that you can update it correctly.

FAQ

Q: How do I transfer my data to another Computer?
A: On your current computer, run export fp/backup.json to save all contacts to a file. Copy backup.json to the other computer, then run import fp/backup.json in CampusLink there. Alternatively, you can manually copy the data file at [JAR file location]/data/addressbook.json to the same location on the other computer.

Known issues

1. When using multiple screens, if you move the application to a secondary screen, and later switch to using only the primary screen, the GUI will open off-screen. The remedy is to delete the preferences.json file created by the application before running the application again.
2. If you minimize the Help Window and then run the help command (or use the Help menu, or the keyboard shortcut F1) again, the original Help Window will remain minimized, and no new Help Window will appear. The remedy is to manually restore the minimized Help Window.
3. If you forget your password, there is currently no password recovery mechanism. You can reset the app by deleting preferences.json (removes password) and data/addressbook.json (removes all contacts) from the app’s home folder.

Command summary
